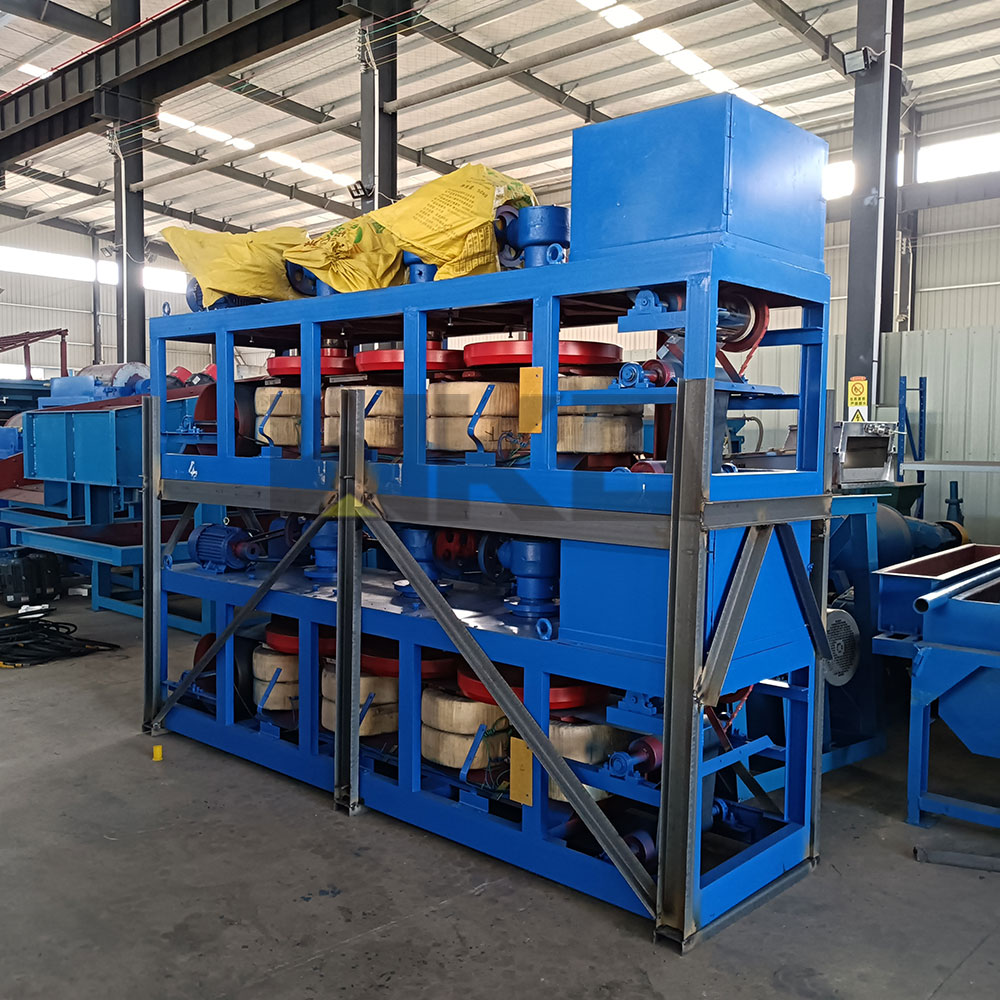

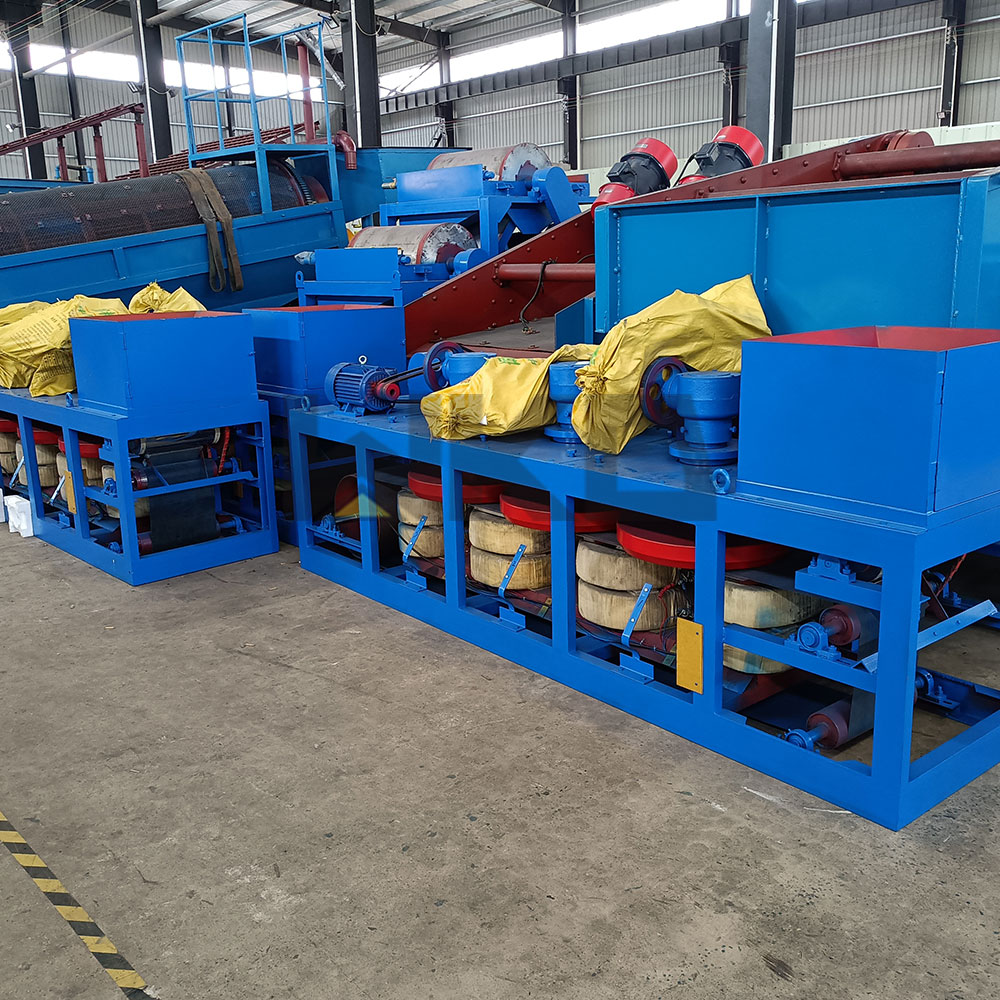

Three Disc Magnetic Separator
Three disc magnetic separator is a dry intensified magnetic separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon
Item | Unit | 3PC-500 | 3PC-600 |
magnetic | hauteur | distance to belts-urface 2mm | distance to belts-urface 2mm |
magnetic intensity | Gauss | 17000 | 18000/20000 |
number of disk | pcs | 3 | 3 |
diameter of disk | mm | 500 | 600 |
revolution of magnetic disk | r/min | 25-40 | 22-38 |
power supply | Voltage | 380 | 380 |
exciting coil | unite | 4 | 4 |
matching motor | kw | 1.5 | 2.2 |
exciting power | kw | 1.5 | 1.6 |
duty rating | continuous | continuous | |
feed width | mm | 210 | 300 |
feed size | mm | ≤2 | ≤2 |
process capacity | kg/h | 100-500 | 500-800 |
