Gold Centrifugal Concentrator

Gold Centrifugal Concentrator enables highly efficient separation of high-density minerals (like gold) from low-density gangue

Send Inquiry

Product Description

Gold Centrifugal Concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals. Gold Centrifuge Concentrator is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

Gold centrifugal separator apply centrifugal force to separate particles according to their size, shape, density by rotor speed. The hollow shaft of this equipment can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailing’s launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.

Product Picture

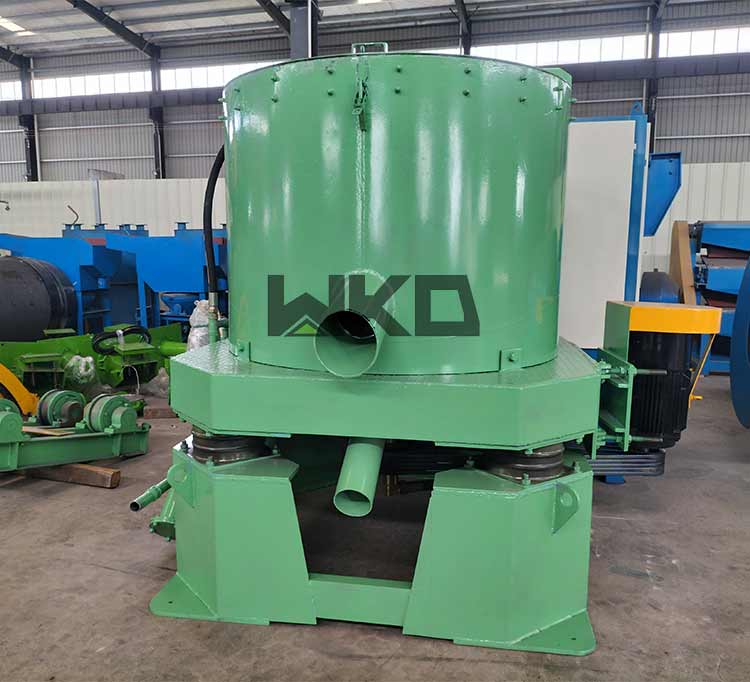

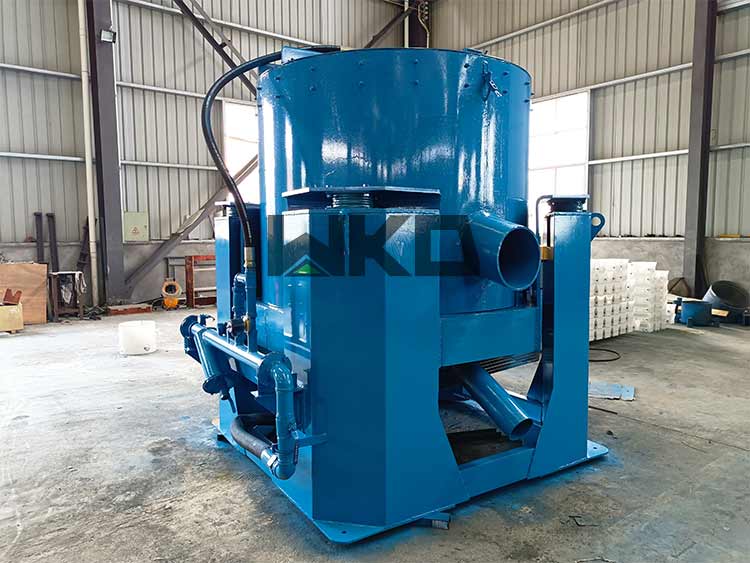

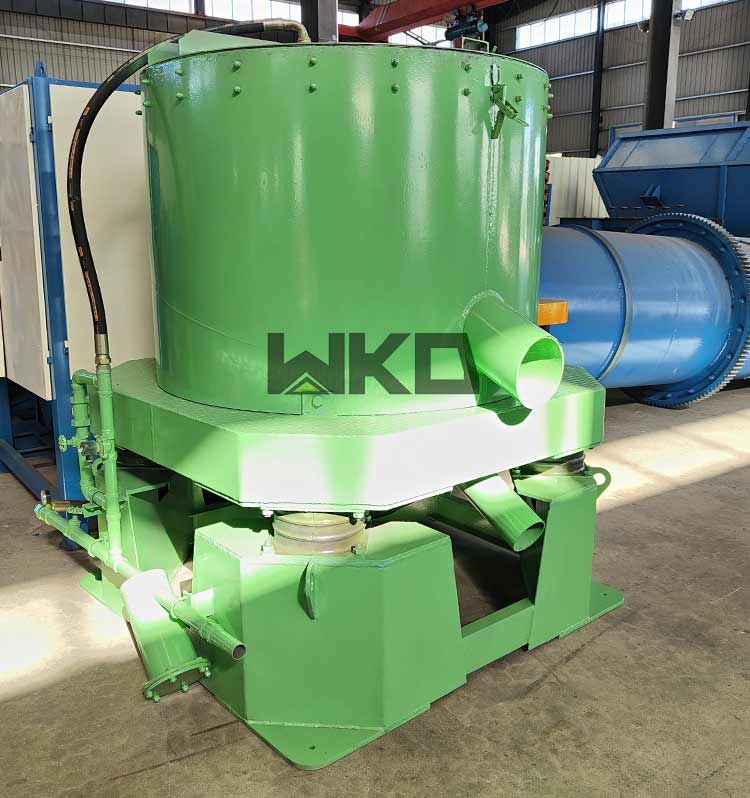

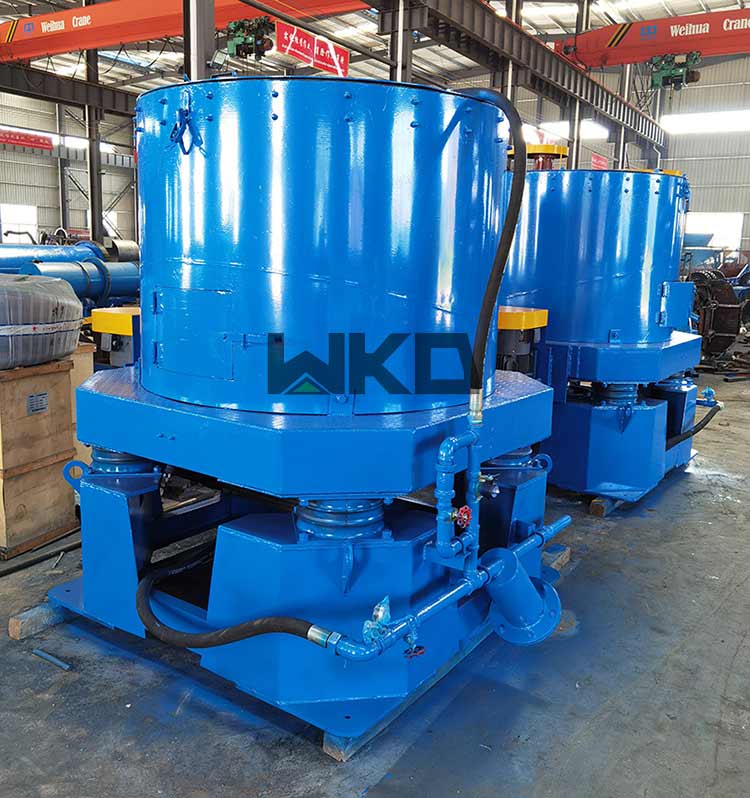

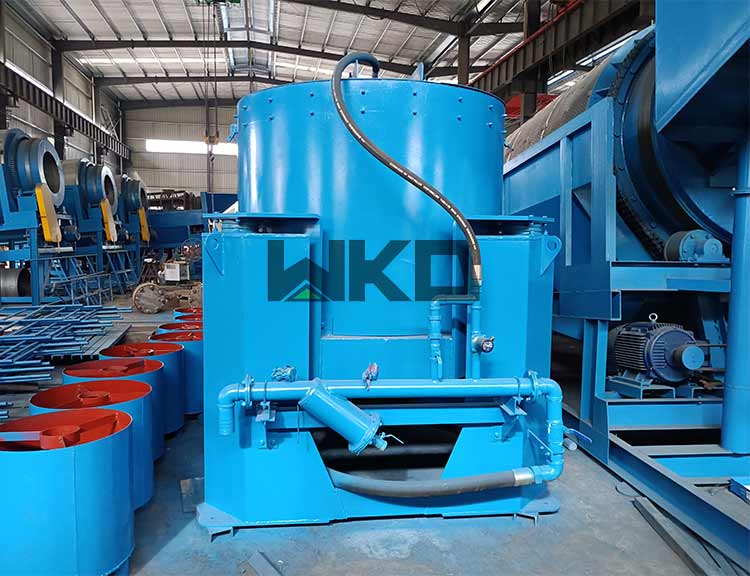

Centrifugal Gold Concentrator

Technical Parameters

Model	STLB20	STLB30	STLB60	STLB80	STLB100
Capacity(t/h)	0-0.6	2-3	8-12	40-45	80-120
Fluidization Water Required(m³/h)	2-3	3-5	7-10	30-36	60-80
Slurry Water Required(m³/h)	1.5-4	5-7	8-12	40-45	70-100
Feeding Density(%)	0-50	0-50	0-50	0-50	0-50
Feeding Size(mm)	0-3	0-3	0-5	0-5	0-5
Concentrate cleaning Up Cycle	Vein Gold:1-3 Hours; Placer Gold:2-6 Hours
Concentrate Weight(Kg)	2	3-5	10-20	40-50	70-85
Power(Kw)	0.75	1.5	4	11	18.5
Weight(Kg)	205	380	1100	2300	3200
Dimensions(mm)	914700900	11608851165	182014501700	247620322018	284920852426
