Vibrating Sluice Box Gold Concentrator

Vibrating Sluice Box Product Description

The Vibrating Sluice Box is an advanced mineral processing equipment specifically designed for placer gold recovery. Developed from the conventional fixed sluice box, it incorporates the benefits of both traditional sluice boxes and jig concentrators. By integrating a vibrating mechanism, it effectively addresses issues such as material compaction in standard sluices and the high yield associated with jig machines, resulting in higher gold recovery rates without compaction.

This equipment consists of a feed hopper, sluice channels, rubber deck, vibration frame, eccentric drive system, transmission mechanism, and support structure. The rubber deck, driven by an eccentric mechanism, moves up and down in a manner similar to a jig diaphragm, effectively preventing blockages and enhancing gold recovery.

Vibrating Sluice Box Advantages

Rational structure design, high strength, easy disassembly, and portability, making it suitable for transportation and relocation.

High washing efficiency, ideal for processing viscous gold-bearing sand with exceptional recovery performance.

Capable of recovering not only coarse and flake gold but also micro-fine gold particles down to 0.02mm.

Strong adaptability to various geological conditions and ore types, including primary and tailing ores, with low water and energy consumption.

Higher concentration ratio compared to jig machines, ranging from tens to hundreds of times, due to intermittent concentrate discharge.

The Vibrating Sluice Box is widely used in gold dredgers, mobile gold washing plants, fixed extraction systems, and as an auxiliary recovery unit in sand washing operations.

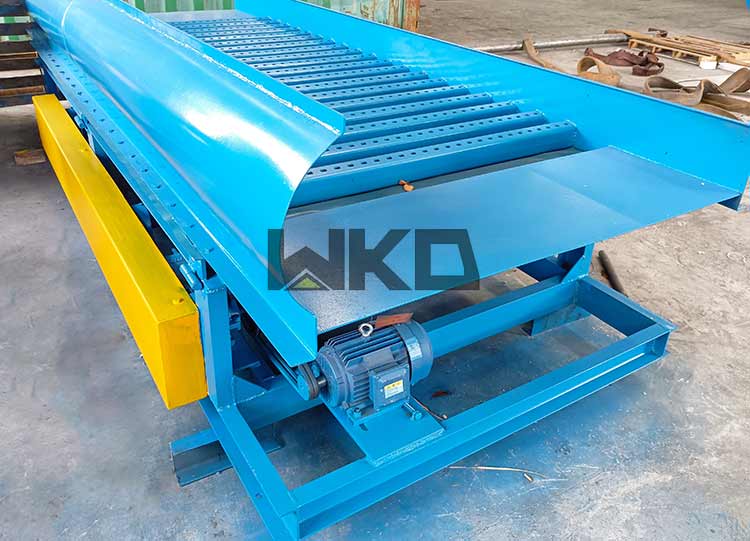

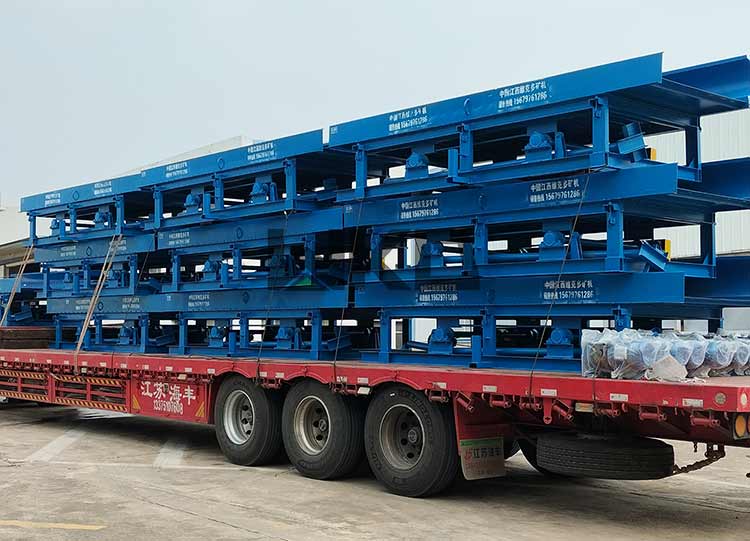

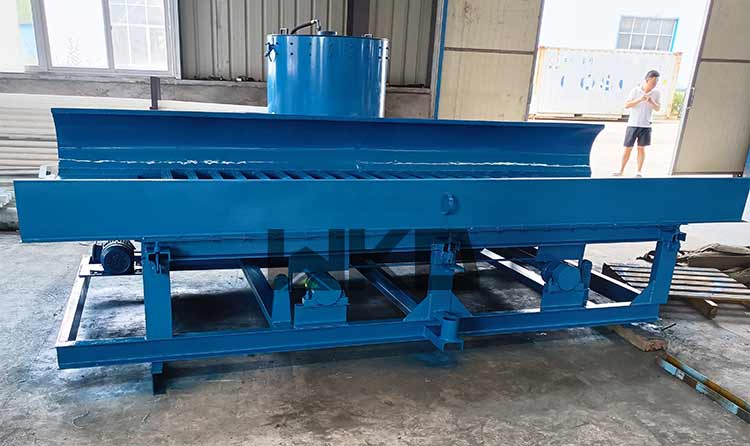

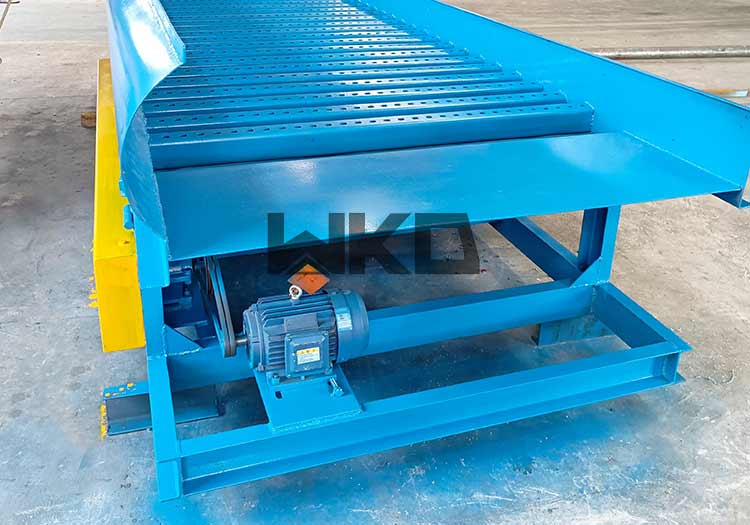

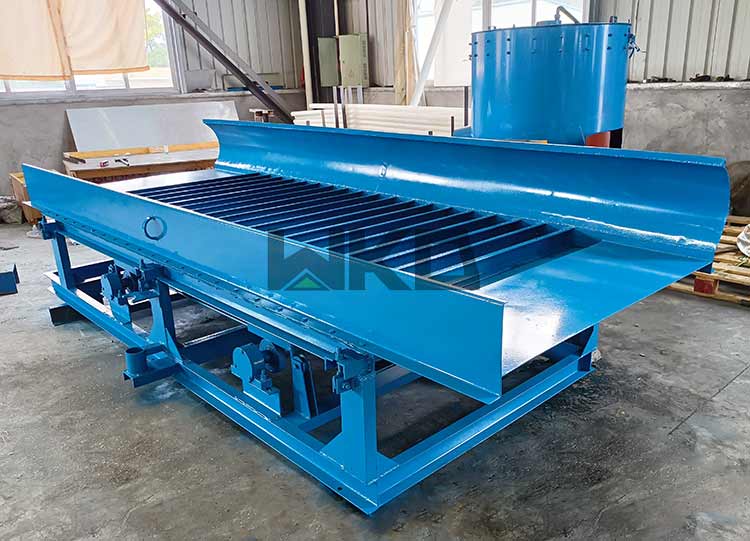

Vibrating Sluice Box Picture

Vibrating Sluice Box Technical Parameters
