Shaking Table,Gold shaking table,gravity separation table
Shaking table, also known as a gravity separation table, is a key mineral processing device that separates materials based on differences in density
Shaking Table Product Description
The shaking table, also known as a gravity concentration table, is a key equipment for fine-grained material separation based on density differences. It primarily consists of a table deck, a drive mechanism, and a support frame. The drive system typically employs an electric motor coupled with a reciprocating mechanism (such as a crank-link or eccentric cam), which imparts a asymmetric oscillating motion to the table deck. This motion, combined with the tilt of the deck and water flow, enables the stratification and separation of particles according to their specific gravity.
The shaking table features a rectangular or diagonal deck surface with riffles that enhance material distribution and segregation. Its compact design allows for precise control over stroke length, frequency, and deck inclination, making it highly efficient for processing low-tonnage, high-value materials. It is widely used in laboratories and small-to-medium-scale mining operations due to its operational flexibility and low energy consumption.
Shaking Table Advantages
High separation precision for fine particles, effective enrichment of target minerals, and strong adaptability to varying feed grades.
Simple structure, easy installation and operation, low maintenance costs, and minimal power requirements.
Suitable for beneficiation of minerals such as gold, tungsten, tin, tantalum, iron, and chromite, as well as industrial minerals like silica sand and coal.

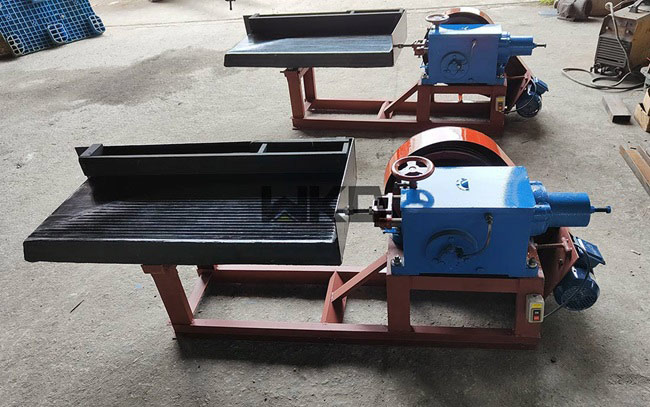

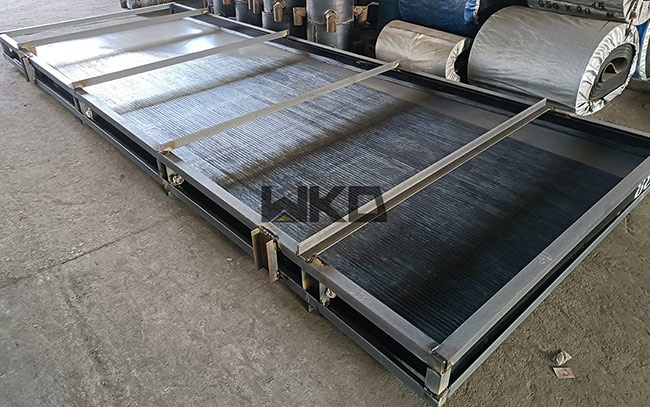

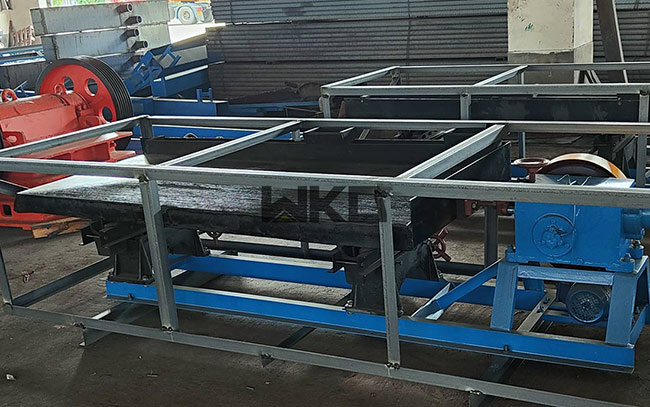

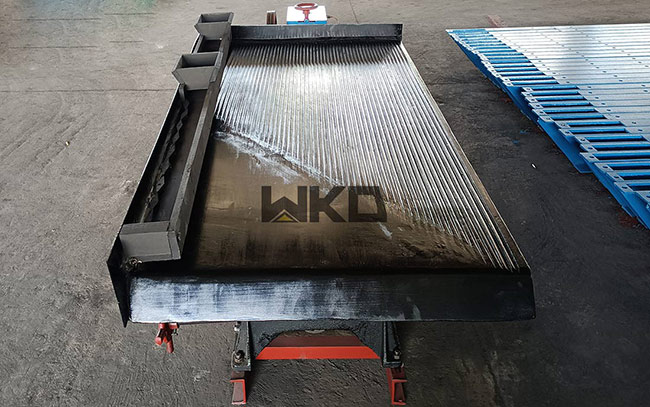

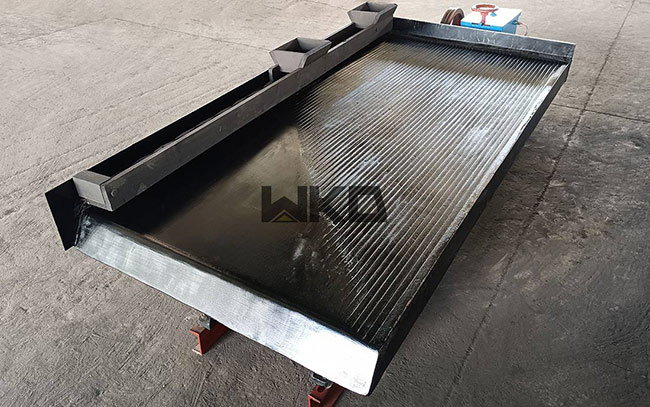

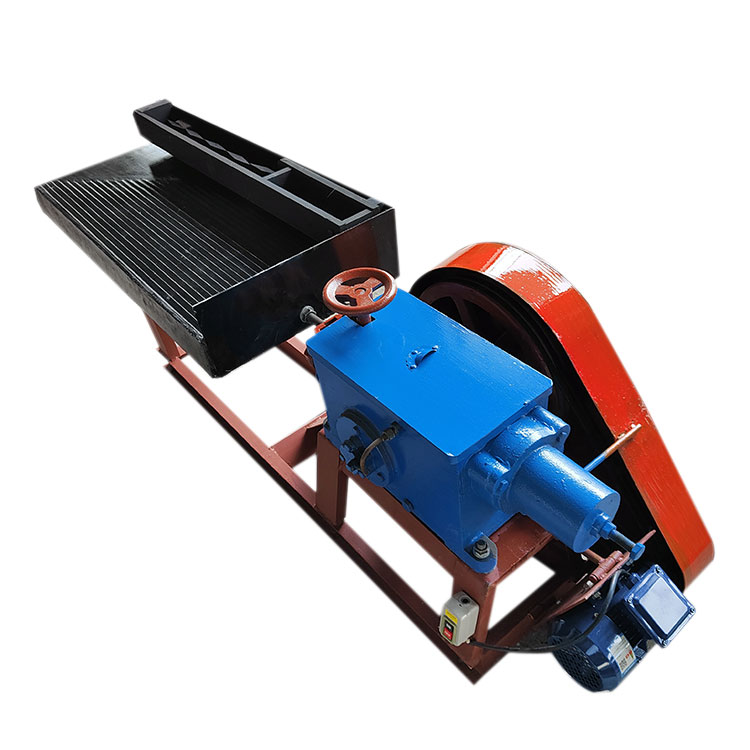

Shaking Table Picture
Shaking Table Main Technical Parameters
Model | LY4500 | LY3000 | LY2100 | LY1100 |
Deck Size (mm) | 4520×1850×1560 | 3000×1490×1360 | 2100×1050×850 | 1100×500×430 |
Deck Area (㎡) | 7.67 | 4.08 | 2 | 0.51 |
Feeding Size (mm) | 2-0.037 | 2-0.037 | 2-0.037 | 2-0.037 |
Water Consumption (t/h) | 2-5 | 1.5-3 | 1-2.5 | 0.2-0.5 |
Capacity (t/h) | 1-2.5 | 0.6-1.5 | 0.4-0.8 | 0.1-0.2 |
Stroke Length (mm) | 10-30 | 10-30 | 10-30 | 9-17 |
Frequency (r/min) | 240-360 | 210-360 | 210-360 | 130-210 |
Horizontal (°) | 0°-10° | 0°-10° | 0°-10° | 0°-8° |
Motor (kw) | 1.1 | 1.1 | 1.1 | 0.55 |
Dimension (mm) | 5630×1850×860 | 4130×1680×860 | 3040×1050×760 | 1530×500×660 |
Weight (t) | 0.65 | 0.55 | 0.35 | 0.15 |
