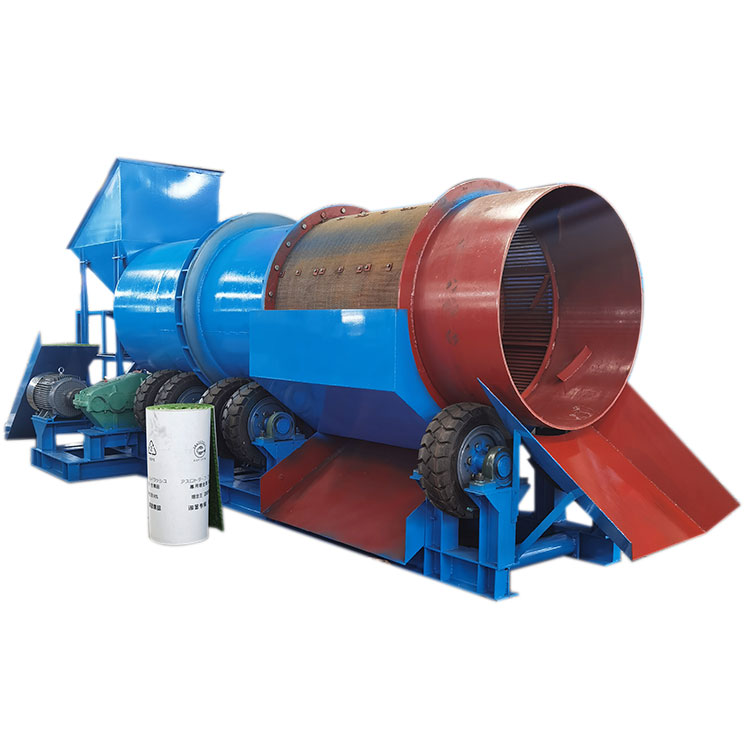

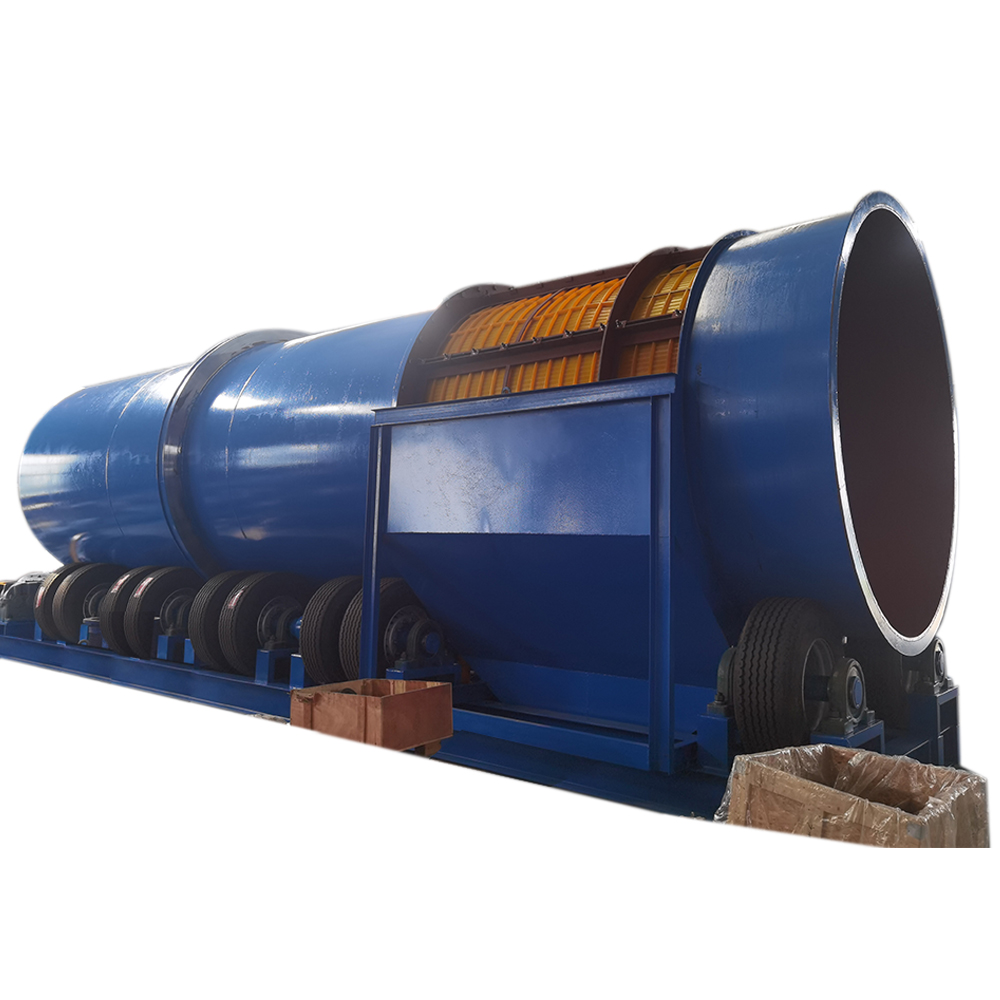

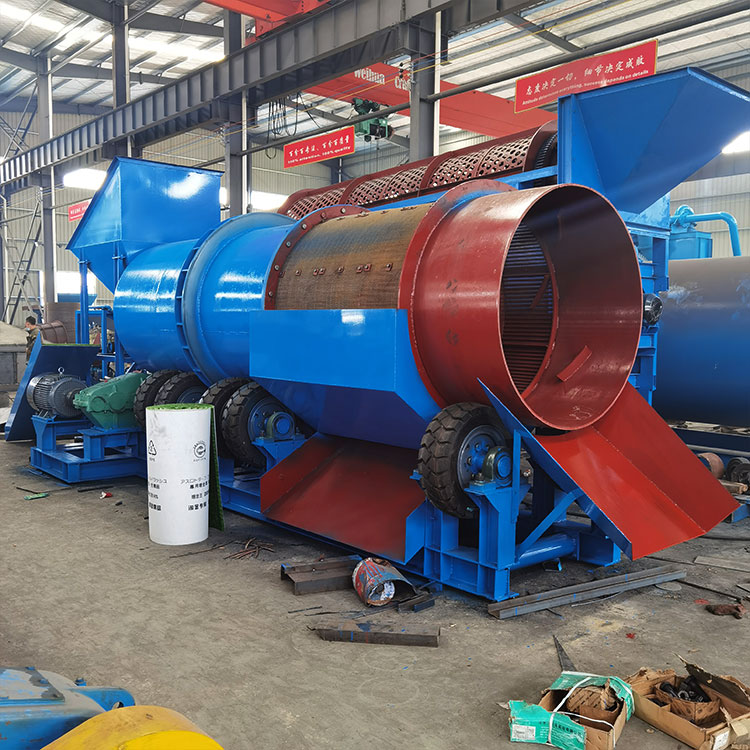

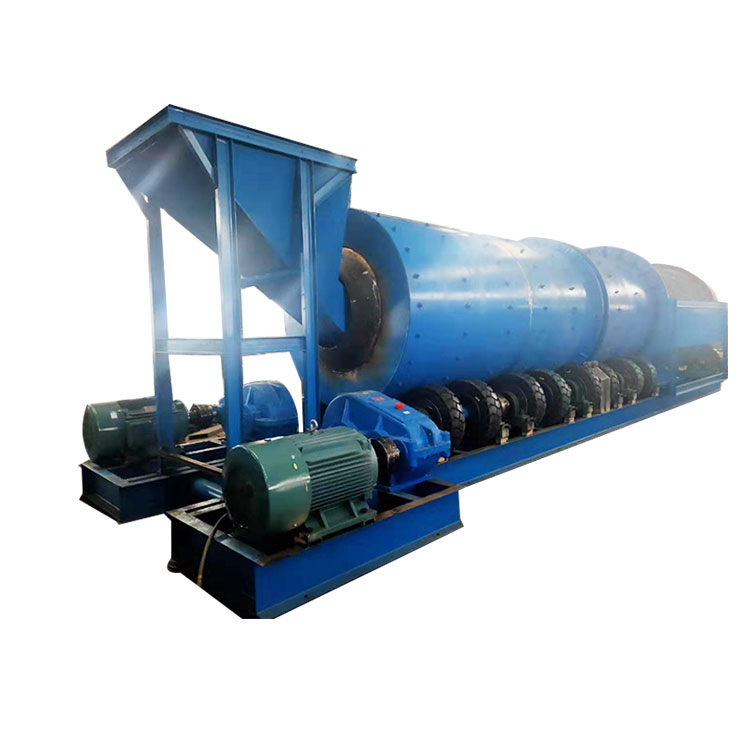

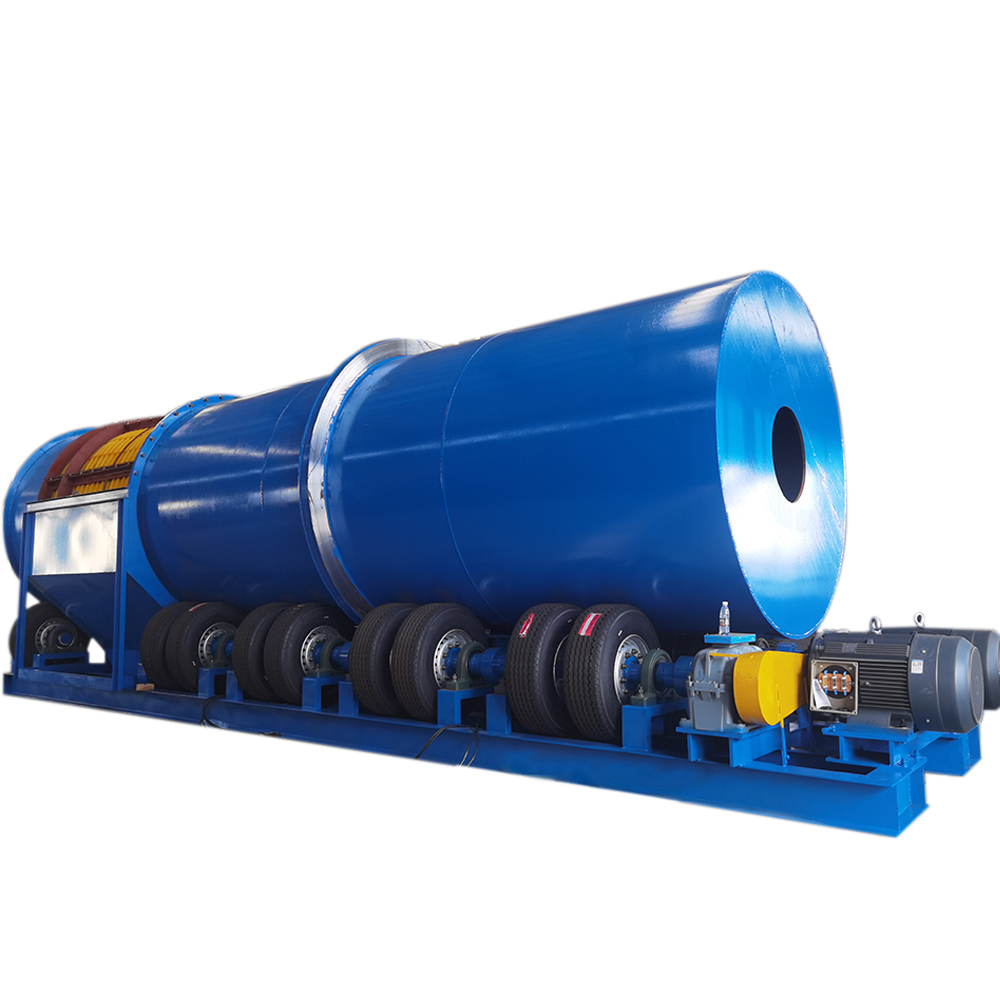

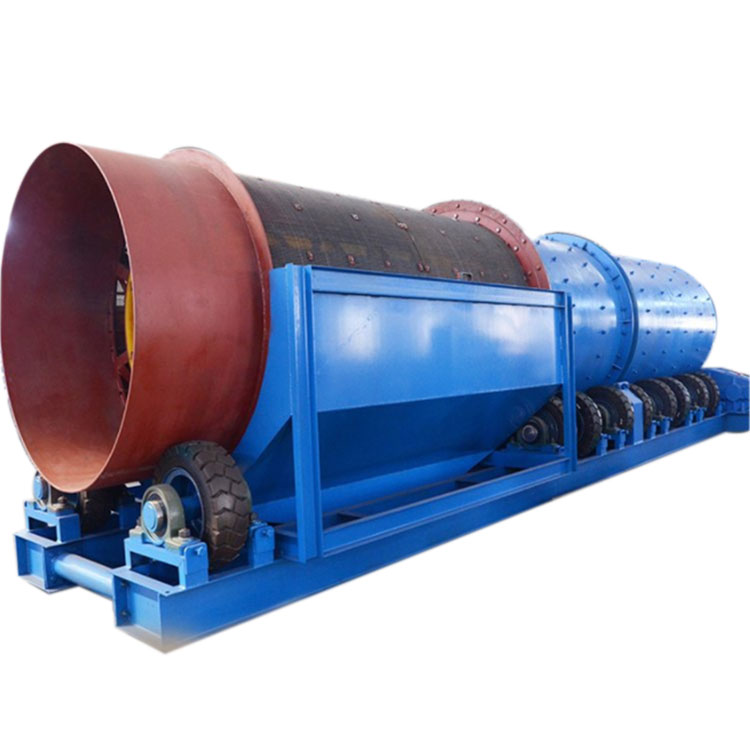

Trommel Scrubber
The Trommel Scrubber is an autogenous rotating drum scrubber The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the target mineral is released
Rotary scrubber is the most advanced ore washing equipment at present in China. It is able to de-slime of the sand and stone, the drum inside is equipped with single or doublelayer round screen can get 2 to 3 different size of sand stone products, it is widely used to the washing of
1. Manganese Ore
2. Iron Ore
3. Limestone
4. Tungsten ore
5. Silica Sand
6. Alluvial/placer gold
7. Kaolin
8. Bauxite
9. Diamond
10. Gemstone
| Model | Drum Size (mm) | Screen mesh size (mm) | Rotation speed (r/min) | Feeding size (mm) | Water Consumption (m3/h) | Capacity (T/h) | Power (Kw) | Weight (T) |
| RXT1030 | Φ1000×3000 | 5-20 | 25-28 | ≤100 | 1.5-4/t | 30-50 | 15 | 4.8 |
| RXT1230 | Φ1200×3000 | 5-20 | 23-25 | ≤100 | 1.5-4/t | 50-70 | 18.5 | 5.8 |
| RXT1545 | Φ1500×4500 | 5-20 | 18-22 | ≤150 | 1..5-4/t | 70-120 | 30 | 6.9 |
| RXT1560 | Φ1500×6000 | 5-20 | 18-22 | ≤150 | 1.5-4/t | 80-130 | 37 | 8.3 |
| RXT1845 | Φ1800×4500 | 5-20 | 20-21 | ≤170 | 1.5-4/t | 90-130 | 45 | 11.8 |
| RXT1860 | Φ1800×6000 | 5-20 | 20-21 | ≤170 | 1.5-4/t | 100-140 | 45 | 12.8 |
| RXT2060 | Φ2000×6000 | 5-20 | 19-20 | ≤210 | 1.5-4/t | 120-160 | 55 | 14.8 |
| RXT2265 | Φ2200×6500 | 5-20 | 19-20 | ≤210 | 1.5-4/t | 160-180 | 55 | 16.5 |
We can customize as you want!
